Guangdong Wuyou Print: 6 ZCCUTTER Machines Build Full-Category Small-Batch Packaging Digital Factory
全球近6000家客户的共同选择
Guangdong Wuyou Print: 6 ZCCUTTER Machines Build Full-Category Small-Batch Packaging Digital Factory
From "Waiting for Dies" to "Waiting for Drawings"
Inside Guangdong Wuyou Print's workshop, six ZCCUTTER digital cutting machines run nearly non-stop. Corrugated board, cardstock, PP film, PET, grey board, EVA, foam, magnetic strips — every day, dozens of materials cycle through these six machines. Orders that once required hundreds of pieces now start from just a few dozen, even single-piece prototyping.
"Before, making an irregular-shaped display box meant waiting two days for the die, then another two days if the design changed," the floor manager recalls, pointing at a running ZCRC model. "Now the drawing comes in, we cut directly, and a sample is ready in thirty minutes. We dare to take on small-batch orders now."

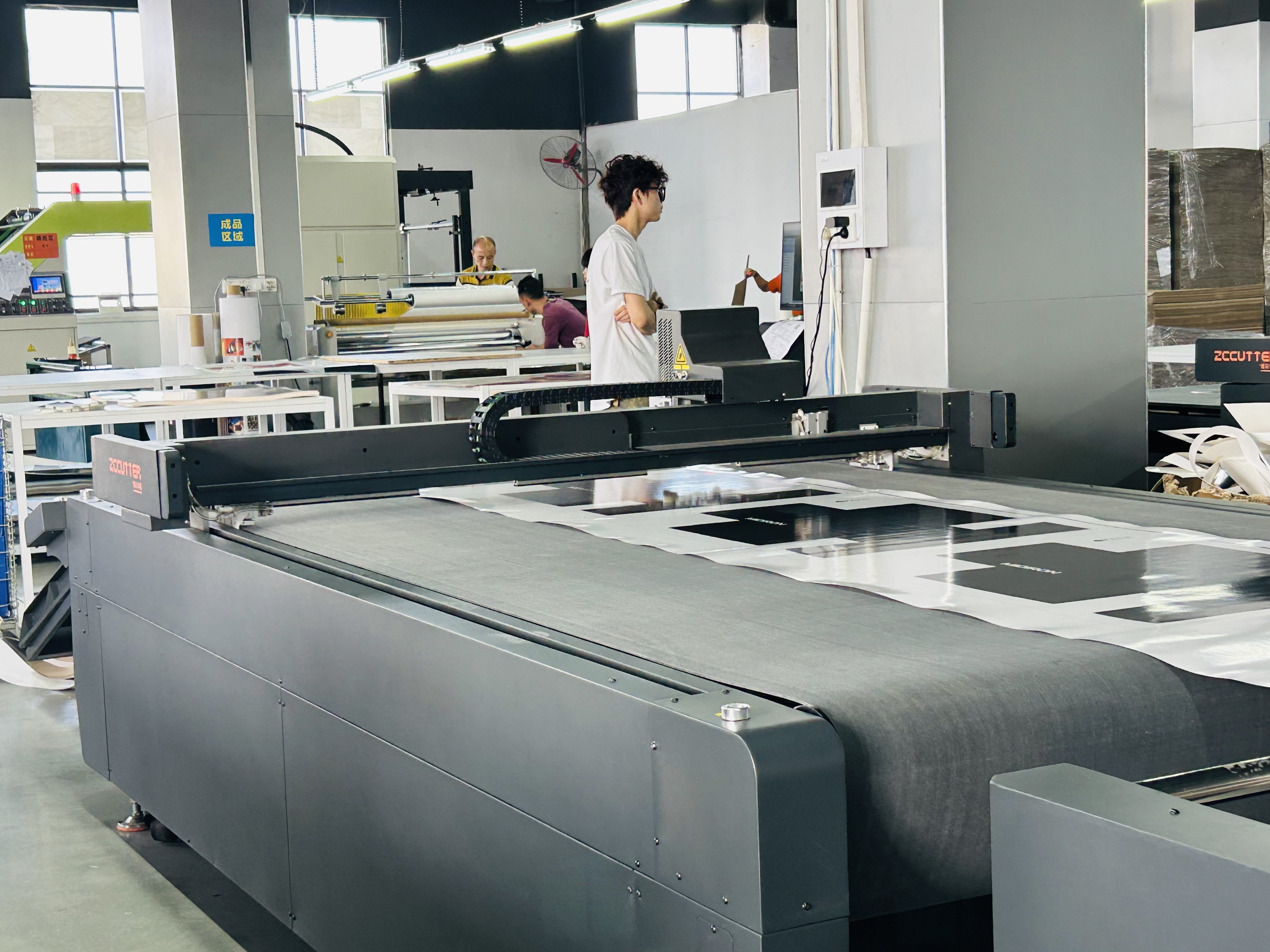

Guangdong Wuyou Print workshop: 6 ZCCUTTER digital cutters form a small-batch packaging digital factory
Equipment Configuration: 6-Machine Matrix
The workshop's six ZCCUTTER units are assigned by function, forming a coordinated production matrix that covers the full spectrum of small-batch packaging needs:
| Model | Working Area | Primary Role | Key Materials |
|---|---|---|---|
| ZCRC-1410 | 1400 × 1000 mm | Corrugated box prototyping & display rack cutting | E/F-flute corrugated, grey board |
| ZCRC-1014 | 1000 × 1400 mm | CCD-registered printed box cutting | Printed cardstock, laminated corrugated |
| ZCRD-1814 | 1800 × 1400 mm | Dual-beam high-throughput batch cutting | Corrugated, honeycomb board |
| ZCRD-2516 | 2500 × 1600 mm | Oversize display & POS material cutting | Large-format corrugated, foam board |
| ZCRA-1014 | 1000 × 1400 mm | Cardstock & film box rapid prototyping | Cardstock, PP/PET film, thin grey board |
| ZCRB-1014 | 1000 × 1400 mm | Flexible material & gasket cutting | EVA, foam, sponge, magnetic strip |

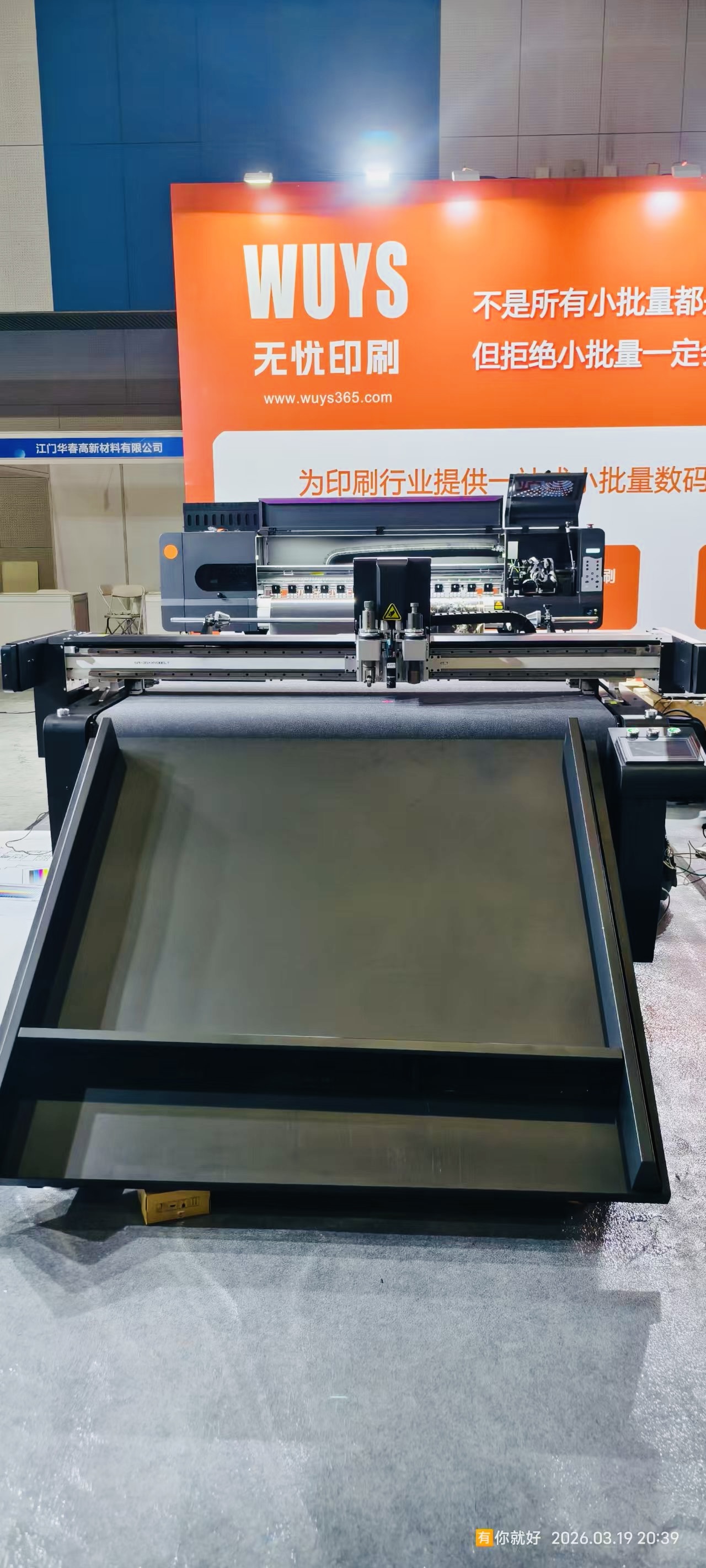

ZCCUTTER fully automatic digital cutting machine — vibration blade technology for clean, burr-free edges
Solving the Fragmented Order Challenge
The packaging industry's order structure is shifting: brands iterate new products faster, e-commerce bestsellers have shorter lifecycles, and personalized customization demand keeps rising. Traditional high-volume die-cutting reveals three bottlenecks when facing "many varieties, small quantities, tight deadlines" orders:
- High die cost: A single irregular box die costs thousands of yuan — uneconomical for small runs
- Long changeover time: Loading the die, calibrating, test-cutting — half a day passes before production starts
- Narrow material adaptability: Die-cutting cannot flexibly switch between corrugated, cardstock, film, and auxiliary materials
Wuyou Print's answer: replace part of the die-cutting process with ZCCUTTER digital cutters, shifting from "die-driven" to "data-driven" production.
Guangdong Wuyou full-category digital printing factory — six machines working in parallel
Production Workflow: Drawing to Finished Product
The digital factory workflow at Wuyou Print covers ERP order management, automatic imposition, digital printing, digital cutting, and finishing. ZCCUTTER serves as the "digitalized closing loop" in the forming stage — printed paper or corrugated sheets go directly through the cutter and become foldable, assemblable products or semi-finished parts.
Under this model, design changes transfer directly to the cutting path without remaking any physical die. For brand clients, this means the time from design finalization to holding a physical sample shrinks from days to hours.

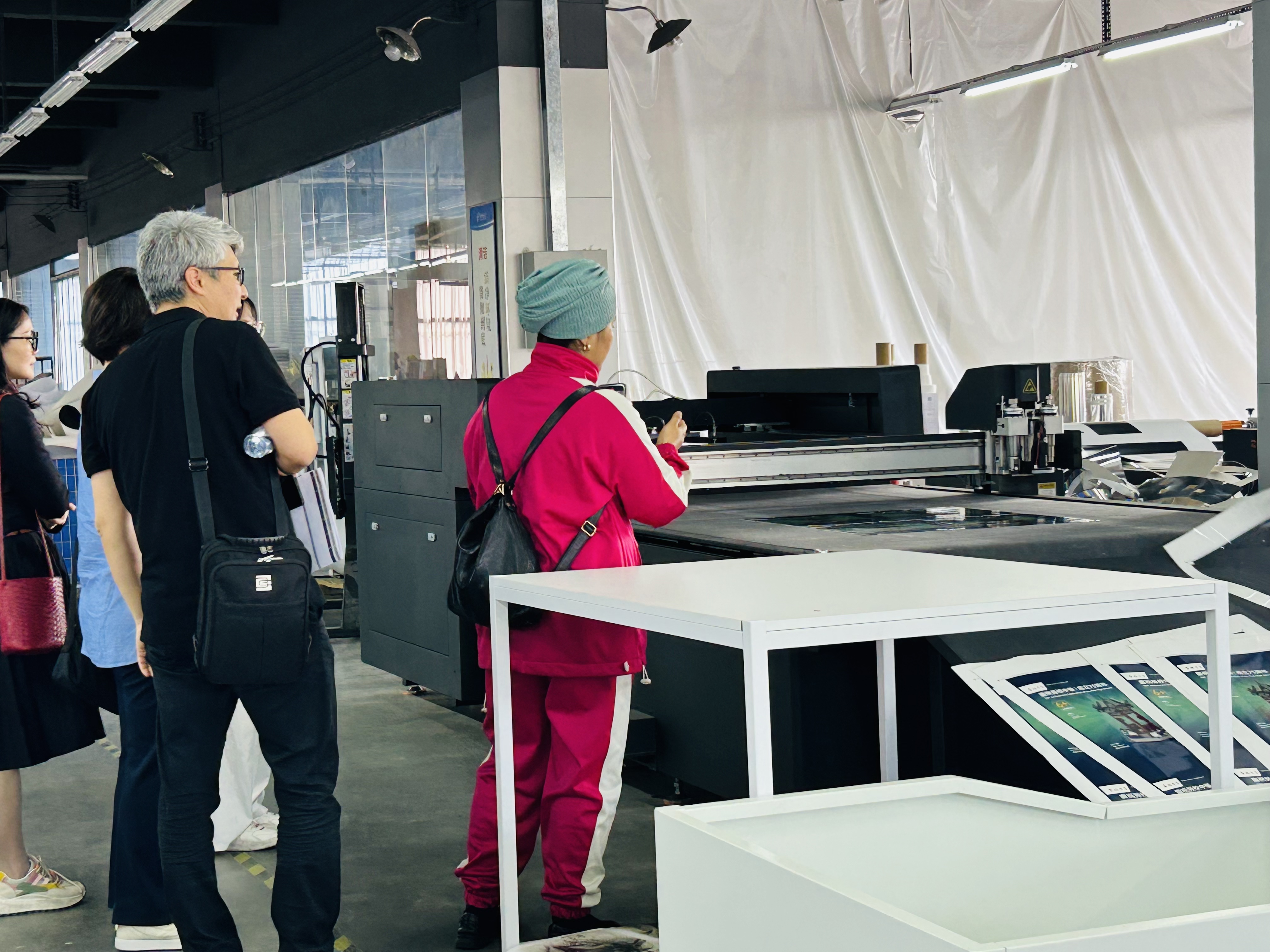

ZCRC vibration blade cutting a corrugated display rack — CCD vision registration ensures contour accuracy
On the shop floor, cutting files sent from the design department reach the machine with zero manual nesting intervention. The vibration blade head automatically adjusts depth and pressure based on material thickness, producing smooth cut edges with no crease marks and no burn marks.
Cutting files travel directly from design to machine — no manual nesting required
Results & Benefits: Category Expansion Flexibility
"Before, we mainly worked with corrugated and cardstock. Now we cut film, grey board, EVA, foam — our clients expanded their product categories too," the floor staff noted. The more material types a single machine covers, the greater the factory's order flexibility.
For Wuyou Print, the six ZCCUTTER machines deliver more than throughput — they deliver order-taking capability. The confidence to accept packaging orders that are diverse in variety, small in quantity, and tight in deadline — which is exactly the real demand from an increasing number of brands.
Small-batch multi-category packaging samples: color boxes, irregular displays, EVA cushion pads
Video: Wuyou Print × ZCCUTTER Digital Cutting On-Site
Guangdong Wuyou Print digital factory: 6-unit ZCCUTTER ZCRB matrix (1410/1014/1814/2516) serving sample clients with full-category small-batch packaging customization
